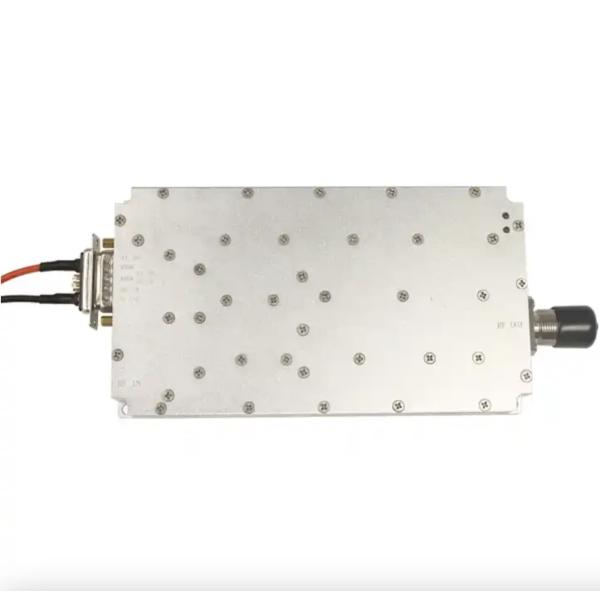

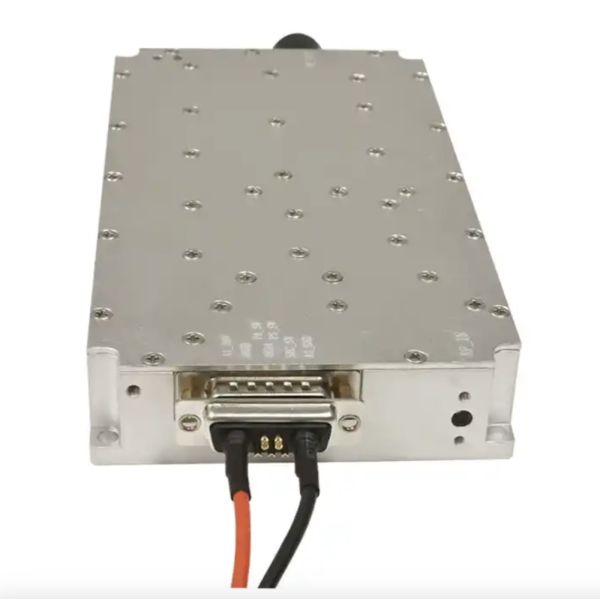

5.8G 100W GaN Anti Drone Module
Functional Highlights
- Power supply: +30V via 7W2 (male) connector
- RF input interface: SMA-KFD (optional)
- RF output interface: N-KFD
- Control interface with 7W2 (male) socket and feedthrough capacitors
- Mounting: 4 Φ4.5mm through holes for M3 screws
Technical Specifications
| Parameter |
Specification |
| Frequency |
5725-5850MHz |
| Output Power |
50dBm |
| In-band Group Delay |
≤1µs |
| Power Gain |
45±1.0 (external input 9dBm, power amplifier output 50dBm) |
| In-band Fluctuation |
≤2.5dB (peak-to-peak value) |
| Input VSWR |
≤1.35 |
| Output VSWR |
≤1.3 |
| Supply Voltage (Typical) |
+30Vdc |
| Supply Voltage Range |
24-36V |
| Supply Current |
+30Vdc@100W ≤6.5A |
| Output RF Connector |
N-50KFD |
| Dimensions |
170x94x26.5mm (excluding connectors) |
| Built-in Features |
High-efficiency modulation sweep |
| Input Signal Source |
Internal signal source with external source capability |
